Creating a custom EdgeClub Template

[canucck]

Hi all,

After having seen Chris's videos and Dave Steckler's reviews, I am pretty jazzed at the thought of being able to create my own templates, that will identify BUY and SELL signals, based on things such as BONGO, FORCE, IAN PCT B, SAR, etc. There are tons of Edgerater scans, so the sky is the limit.

I am not a programmer, but I am determined. I have been able to create Edgerater templates, but so far a working EdgeClub template hasn't been completed. I am attaching a spreadsheet with my first attempt (in the attached zip file), with the hopes that a simple answer may be at hand. If I get this darn thing working, I'll post it to the forum.

In the attachment, I have added text boxes to give some explanation of what I was doing or was hoping to achieve. My starting point was another template that I knew worked, and my method was basically to swap out the Edgerater system scan information, with that in the template and cross my fingers that it would work. It did not, and I was not sure how to troubleshoot where the issue lie, so I am asking for help here in the forum.

Thank you

PS For the Administrator, an *.xlsx file was not allowed for upload, so I used WinZip to get around that issue.

[Chris White]

Hi Mike,

I have modified this template by adding comments that you can see if you view it in Excel.

BONGO_TEMPLATE_ATTEMPT_Commented.zip

Updated template with comments viewable in Excel

(30.1 KiB) Downloaded 2536 times

In summary, to get it to work the way you want you need to do the following:
1. Create a ChartScript that is a generic 'EntryExit_State' script that will take any other chart script as an entry script and any as an exit script. I have given the code within the comments too.

2. Change the column headings on the 'System' sheet to refer to this new script. Because the script will be in your 'My Scripts' area you need to prefix the name of the script with 'My'. You will see how I have done that in the comments in the file.

3. Change the range referred to by ERF_ on the 'System' sheet

4. Change the formatting rules referred to by ER_SETTING_FORMATRULES on the 'Parameters' sheet.

Once you have done that you have a generic template that you can add as many systems as you like.

Chris.

[canucck]



Chris,

Thanks for the comments on the template and the script. I have a few follow-up questions.

I went to create the generic ENTRYEXIT_STATE script and ran into a few problems. Probably minor, but I can't find info to help me resolve it in the documentation:

I started with the script that you provided

entrysig:= FML(ENTRYSCRIPT);
exitsig:= FML(EXITSCRIPT);
system:= SCALEINLT(entrysig, exitsig, 1);

Buy1: system == 1 & REF(system,1) == 0;
Hold: system > 0 & (REF(system,1) == system);
Exit: system == 0 & REF(system,1) > 0;

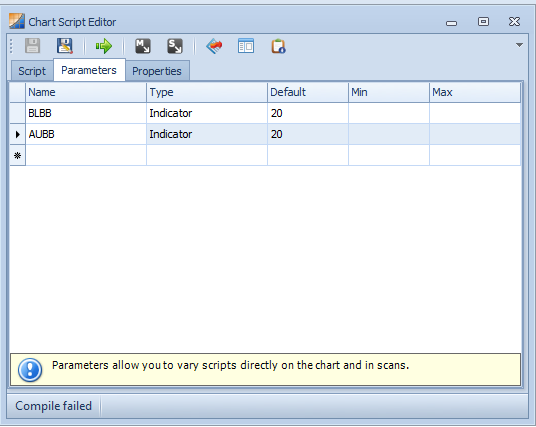

On the parameters tab, I then went and added AUBB, BLBB, BongoDailyDn, BongoDailyUp. The default was "test", so I changed that to 20 for the indicators. I also set the parameter type to "Indicator". Hit compile, and ran into errors.

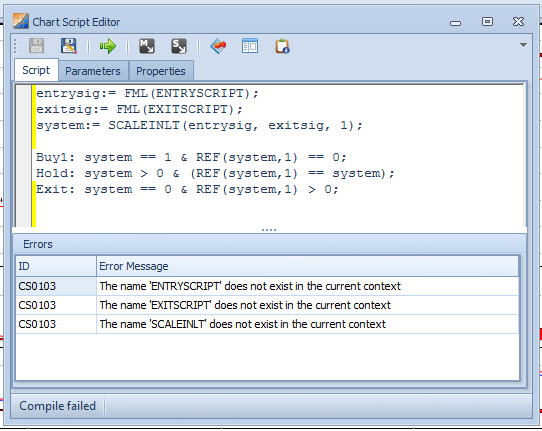

Error ID: CS0103 The name(s): 'ENTRYSCRIPT', 'EXITSCRIPT', 'SCALEINLT' does not exist in the current context.

I tried various permutations to resolve the errors, starting with swapping out the ENTRYSCRIPT and EXITSCRIPT with the actual name of the indicators, and later getting rid of the Bongo indicators to just have the AUBB, BLBB indicators, but could not get past the error.

Can you help me with this, please? Thanks for your support.

[Chris White]

Hi Mike,

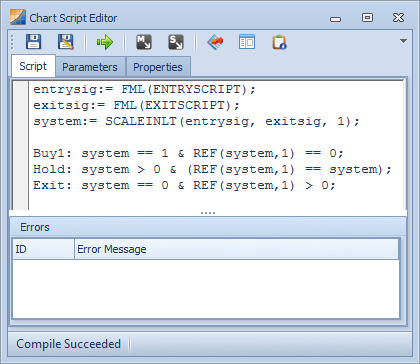

You're nearly there. You have the script tab set up correctly like this:

EntryExit_State Script Tab

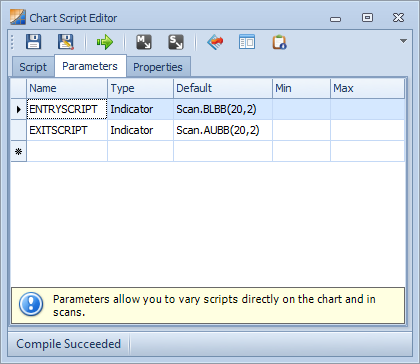

But you need to set up the parameters tab like this:

EntryExit_State Parameters Tab


Explanation:
The parameters to the script are ENTRYSCRIPT and EXITSCRIPT, meaning that you provide these scripts as inputs whenever you call this script. The default parameter values are Scan.BLBB(20,2) and Scan.AUBB(20,2), meaning that when you first drop the script onto a chart area it is set with these two inputs which you can the change in the 'Area Properties' panel.

So now when you create your custom template, you provide the names of the scripts that you want to use for entry and exit in the cell that is named 'ERF_x'. In the case of your BongoDailyUp and BongoDailyDn system that would be:

Code: Select all

My.EntryExit_State(Scan.BongoDailyUp[Event],Scan.BongoDailyDn[Event])[AS_TEXT]

That represents the text that needs to be in the ERF_x named cell but with a bit of Excel text manipulation I'm sure it's possible to write an Excel formula in the cell that creates that text for you based on two other cells, one containing only

Scan.BongoDailyUp[Event]

and the other containing

Scan.BongoDailyDn[Event]

Thanks,
Chris.

[canucck]

Hi Chris,

Been bogged down since your posting, and now am getting back to finalizing the template. However, I ran into another error:

CSO103 - The name 'SCALEINLT' does not exist in the current context

This pertains to the system, I believe - where do we define this value? Thanks again.

[Chris White]

Hi Mike,

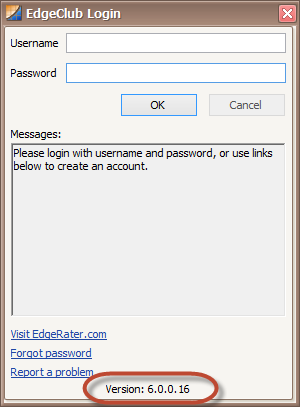

That function should be part of the core EdgeClub software. Please make sure that you are running version 6.0.0.16. You can find the version on the login screen:

Version number on the Login Dialog

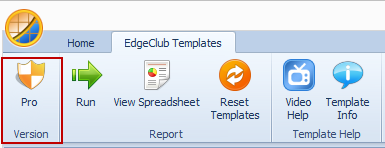

Or from the Ribbon Menu once in the EdgeClub application:

Version number in Ribbon Menu


[Chris White]

Also, in version 6.0.0.16 I have added the EntryExit_State script as a system script so you do not need to define it yourself in your 'MyScripts' area. Just make sure when referencing it that you...

Do Not Use:

Code: Select all

My.EntryExit_State(Scan.BongoDailyUp[Event],Scan.BongoDailyDn[Event])[AS_TEXT]

In Version 6.0.0.16 and higher USE:

Code: Select all

EntryExit_State(Scan.BongoDailyUp[Event],Scan.BongoDailyDn[Event])[AS_TEXT]
